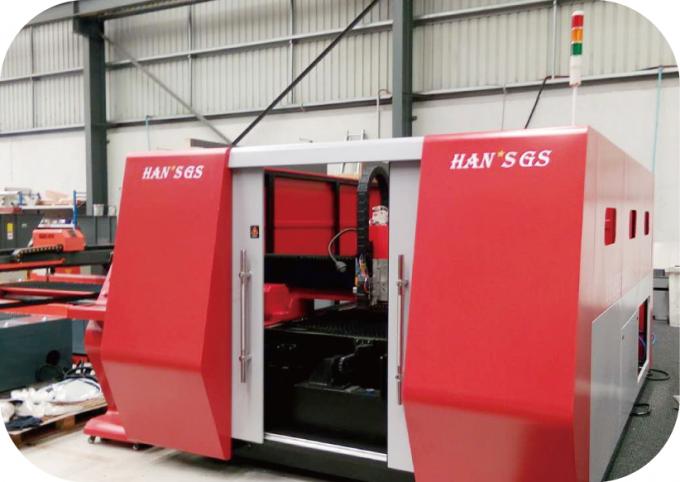

Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000

China Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000 supplier
Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000 supplier Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000 supplier

Large Image :  Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000

Product Details:

Place of Origin: WUHAN,CHINA
Brand Name: HANS GS
Certification: CE,SGS,FDA,CQC,SASO,ISO
Model Number: GS-LFDS3015

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: USD 30000 to 100000 per piece
Packaging Details: Wooden Case by Container
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 PICS PER YEAR
Contact Now
Detailed Product Description
Product Name: Fiber Laser Cutting Machinery Output Power Of Laser Source: 500w
Outer Dimension: 8500 Mm * 3800 Mm * 2000 Mm Machine Weight: About 5850Kgs
Planetary Gear Reducer: APEX(Taiwan)/Sober(Germany) Laser Cutting Head: Raytools(Swiss Brand)

Fiber Laser Cutting Machinery for 5mm to 8mm Metal Cutting , Effective Cutting Size 1500*3000

New Designed HANS GS GS-LFDS3015--The Most Profita...

Fiber Laser Cutting Machine Advantages
Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.
Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
Factory directly supply CNC Fiber Laser Cutting Machine price from Jinan Bodor metal laser cutting machine

Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000
Laser Source Power/Cutting ability

Laser Source Power/Cutting abilityCS(mm)SS(mm)Alumium(mm)Brass(mm)
500WMax cutting thickness8422
Max processing thickness53
700WMax cutting thickness10633
Max processing thickness65
1000WMax cutting thickness14844
Max processing thickness86
1500WMax cutting thickness161065
Max processing thickness128
2000WMax cutting thickness201286
Max processing thickness1610
2500WMax cutting thickness2212108
Max processing thickness2010
3000WMax cutting thickness2514128
Max processing thickness2212


GS-LFDS3015 Technical Specifications

ModelGS-LFDS3015
Laser source mediumFiber
Cutting range (L*W)3000 mm * 1500 mm
Z axle stroke250 mm
Max. positioning speed120 m/min
X, Y axle Max. accelerate speed1.2 G
Cooling formwater cooling
Laser wavelength1070nm


Output power of laser source


500w
Min. cutting gap≤ 0.1 mm
Positioning accuracy of X, Y and Z axles± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles±0.01mm
Thickness of cutting material (according to material)0.2 - 25 mm
Drive modelImported servo motor
Power requirement380 V, 50/60 Hz
Working temperature5 - 45ºC
Continuous working time24 Hours
Machine weightAbout 5850Kgs
Outer dimension8500 mm * 3800 mm * 2000 mm
Total protection level of power supplyIP54


Cutting Simples
It is used to cut Metal,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel,galvanize plate, pickled plate, copper plate, aluminum plate, etc.We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.

Our Team

Laser Metal Cutting Machine for 5mm to 8mm , Effective Cutting Size 1500*3000
