Chinese brand 2000 watts laser metal sheet cutting machine with low price
500w 1000w 2000w laser cutting machine is a complete set of laser cutting machine with optical, mechanical and electrical integration. The equipment consists of fiber laser, chiller, fiber cutting head, cutting machine, exchange table, control system, And ventilation systems and other functional components integration.
Parameters aluminum laser cutting machine
|Output power of laser source
|Cutting area (L*W)
||4000mm × 1500mm
|Z axle stroke
|Max. cutting speed
|Max. positioning speed
|Platform size/Max height of feeding material
||4250x2500mm/more than 120mm
|Min. cutting gap
|Positioning accuracy of X, Y and Z axles
|Repeated positioning accuracy of X, Y and Z axles
|Thickness of cutting material
(according to material)
||Imported servo motor
|Continuous working time
||4300mm x 2280mm x 1500mm
|Total protection level of power supply

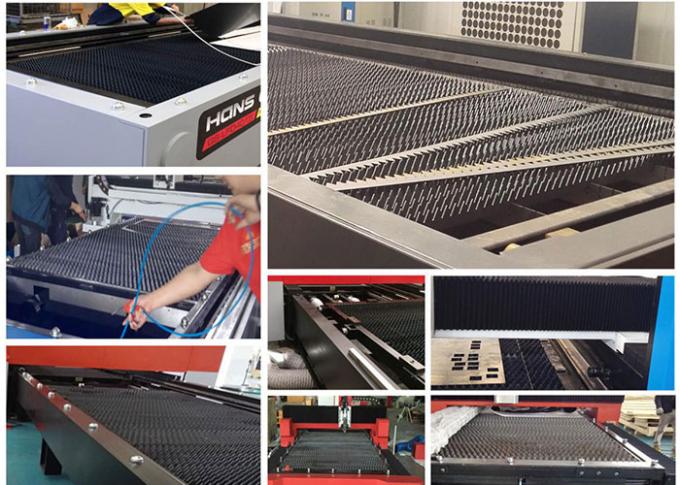

The overall use of fixed parts, gantry mobile structure. Is a two-axis linkage, three-axis control of CNC laser cutting machine, in which X, Y axis linkage to achieve a plane cutting feed, Z axis floating track the workpiece surface.
The three CNC axes adopt the guide of the rolling guideway, the X-axis adopts AC servo to click the rack and pinion double drive, the Y axis adopts the AC servo motor to drive the gear rack and vice feed, the Z axis AC servo motor drives the ball screw Vice feed. Servo motor, screw, rail, reducer, gear, rack are imported famous brands.
