Product Details:
|
| Name: | 1070nm Fiber Laser Cutting Pipe Machine | Laser Wavelength: | 1070nm |
|---|---|---|---|
| Maximum Operating Speed: | 800mm/s | Power (watt): | 800W 1000W 1500W |
| Laser Type: | Fiber Laser | Cutting Thickness: | 30mm |
| Material Cutting Thickness: | 0.2-30mm | Cooling Method: | Water Cooling |
| Electric Power Supply: | AC380V 50Hz/5KW | Repeat Position Accuracy: | ±0.05mm/500mm |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops | Applicable Material: | Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic |
| High Light: | 800mm/s Fiber Laser Cutting Pipe Machine,6020 Fiber Laser Cutting Pipe Machine,1070nm Fiber Laser Cutting Pipe Machine |
||

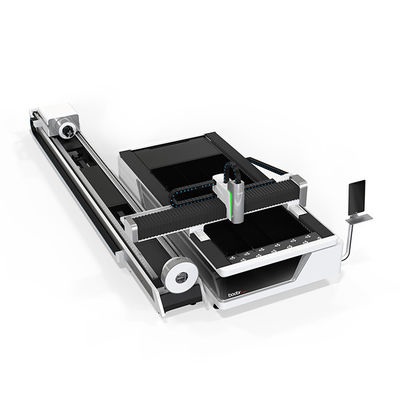

1070nm 800mm/s 6020 Fiber Laser Cutting Pipe Machine
Configuration
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to ensure high processing accuracy.
3. Adopt industrial optical fiber cutting system, easy to install, maintenance , built-in process, ensure high-quality cutting effect.
4. Adopt professional laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.
5. Fiber laser transmitting, flexible processing, realized high accuracy cutting on ecery point.
6. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
Applicable materials: especially designed for the cutting of stainless steel, carbon steel, alloy steel, aluminum, copper, titanium, or other metal materials. We also accept customized order for the treatment of alloys.Targeted Industries: petroleum exploration, lamps, metal, tool-processing and others.
Main configuration:
| Item | Name | Quantity | Brand |
| Laser | 800W fiber laser | 1 SET | Maxphotonics |
| Cutting head | Specialized cutting head | 1 SET | RayTools BT( Switzerland) |
| Machine bed | 1 SET | China | |
| Precise Rack | 1 SET | TAIWAN DINSENSE | |
| Machine body | Precise linear guide rail | 1 SET | TAIWAN HIWIN/ TAIWAN shac |
| X,Y axis servo and driver | 1 SET | LETRO | |
| Reducer system | 1 SET | TAIWAN DINSENSE | |
| controller | 1 SET | FRANCE Schneider | |
| Machine bed accessories | 1 SET | China | |
| Digital cutting system | Controller system | 1 SET | Shanghai cypcut /Shanghai Empower |
| Accessories | Chiller | 1 SET | Teyu |
| Waste recycling equipment | 1 SET | China |
Technical parameters:
| Model | RL3015 |
| Laser Working Medium | ND:YVO4 |
| Laser Wavelength | 1070nm |
| Power | 800 W/1000W/1500W |
| Beam Quality | ＜0.373mrad |
| Max cutting thickness | 10mm carbon steel |
| Working area | 3000mm×1500mm |
| Positioning Accuracy | ≤±0.05㎜/m |
| Repeatition Accuracy | ≤±0.05㎜/m |
| Power Supply | 380V/50Hz |
500w fiber Speed for example:
| Material | m/min |
| carbon steel 1mm | 8 |
| carbon steel 2mm | 4.2 |
| carbon steel 3mm | 2.1 |
| carbon steel 4mm | 1.2 |
| stainless steel 1mm | 7.2 |
| stainless steel 1.5mm | 3 |
| stainless steel 2mm | 1.8 |
| galvanized sheet0.8mm | 5 |
| galvanized sheet1.2mm | 2.6 |
| galvanized sheet1.5mm | 1.8 |
