Product Details:
|
| Name: | Co2 Laser Engraving And Cutting Machine | Cutting Speed: | 0~600mm/s |
|---|---|---|---|
| Working Area: | 600*900mm; 900*1300mm | Laser Power: | 60W,80W,100W Co2 Laser |
| Total Power: | 1.5KW | Picture Format Supported: | PLT, DXF, BMP,JPEG, CDR,DWG And Etc |
| Net Weight: | 750KG | Cooling Mode: | Water Cooling |
| Controller: | DSP(RUIDA 6442s) | Function: | Cutting Nonmetal Materials |
| Equipment Dimensions: | 1830×1500×1240mm | ||
| High Light: | 1.5KW 220V CO2 Laser Engraving And Cutting Machine,220V 50HZ CO2 Laser Engraving And Cutting Machine,AoShuo CO2 Laser Engraving And Cutting Machine |
||

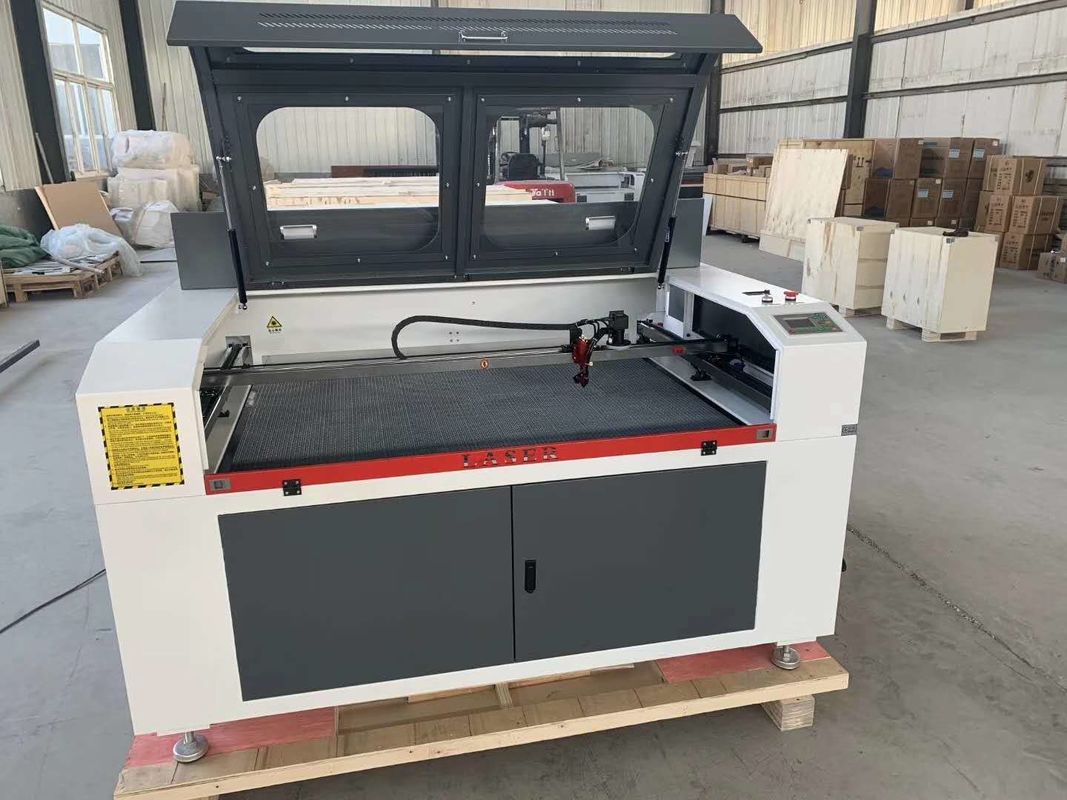

1.5KW 220V 50HZ AoShuo CO2 Laser Engraving And Cutting Machine
Specifications:
1 This model Laser machine uses blocking design, easy to install and adjust
2 The machine frame in reason, the materials can put into from the front and behind,it can Exhaust the smoke on the above and below of the laser machine.
3 It uses offline control system, English LCD, USB interface, support CAD and CorelDraw output directly.
| Parameter | ||||
| Type | RL-1290 | |||
| Engraving Area | 1200 x 900mm | |||
| Laser Power | 60w special for engraving | |||
| Laser Type | CO2 Laser Tube | |||
| Engraving speed | 0~1000mm/s | |||
| Cutting speed | 0~600mm/s | |||
| Resetting positioning accuracy | 0.01mm | |||
| Cutting depth | Acryl 0-20mm(other depths depend on other materials) | |||
| Minimum Shaping Character | 1.5×1.5mm | |||
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ | |||
| Gross power | 1200W | |||
| Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD | |||
| Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF | |||
| Engraver for Curve surfaces (Yes/No) |
No (we can add an Rotary attachment on the Laser Engrave/Cutting Machine, then the machine can engrave on Cylinder) |
|||
| Water Cooling: (Yes / No) | Yes | |||
|
Maximum Height of Materials to Engrave (mm) |
350mm(Up and down by motor) | |||
| Laser Tube (life hours) | 3000-10000hours | |||
| Equipment Dimensions | 1830×1500×1240mm | |||
| Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable | |
| Optional Spare Parts | RF Tube |
Rotary System |
Cooling water syem |
Red Dot Pointer |
| Recommended Spare Parts / Consumables |
Laser Tube and Lens |
|||
Product Advabtages
1.The device uses domestic CO2 glass tube laser source, it can cut and engrave the surface of non-metallic materials with Chinese & English words, numbers, trademarks and other vector graphics, serial number, batch number, specifications and other product labelings
2.Can achieve graphics, text, digital mixing and one-time completion;
3. to realize the graphic, parameter and incremental figures continuously
4. Professional design concept, and it can be customized for different industry, with reasonable structure, elegant appearance and practical.
5.High-precision mold casting profiles composed of high strength, high stability of the mechanical structure, CNC running smoothly, high speed and high precision, the body through the design concept, easy feeding, suitable for unlimited workpiece processing.
6. Stable and perfect design concept, equipped with advanced industrial cooling system, with automatic protection function of water alarm; improve the stability and safety of continuous work. Perfect dust, pollution prevention design, greatly improved the stability of the whole machine.
7.With the flight light path design, unique structure, light path deviation, high stability, easy adjustment and so on. Optical accessories use the best quality imported K9 mirrors and focusing mirror with finer spot and stronger cutting ability, the reflectivity and luminousness is much better than others brand,
8.DSP control: PC-based PCI bus host control unit, using the world's leading DSP-TMS320, XC2S300 control chips, high-speed, more stable and stronger anti-interference ability. The user can choose advanced USB control and Flash Disk (u disk) offline control system.
9.Self-developed high-efficiency laser power supply: With a new high-voltage switch mode, PWM master control technology, more stable performance.
Applicable Materials:
Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wood, ceramic etc.
Applicable Industries:
Advertisement decorations, handicraft, garment, shoes, bags, computerized embroidery and clipping, template cutting, toys, furniture, packing, printing and other industries.
