Product Details:
|

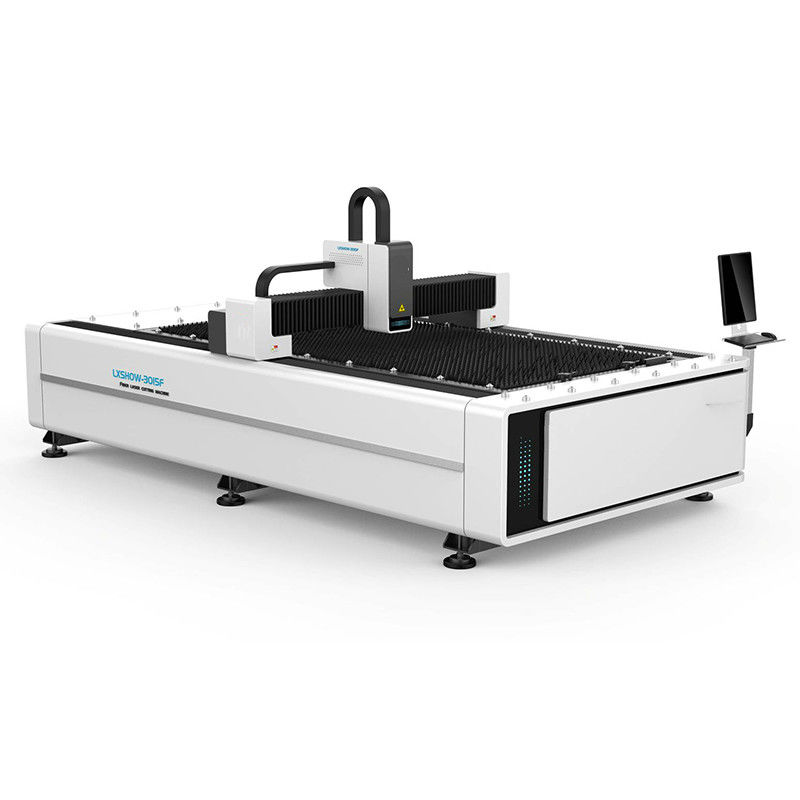

| Name: | 80m/min 30mm Metal Laser Cutting Machine | Key Selling Points: | Automatic |
|---|---|---|---|
| Feature: | High Productivity , High Accuracy | Cutting Area: | 3000mm*1500mm |
| Cooling Method: | Water Cooling | Cutting Thickness: | 30mm |
| Laser Type: | Fiber Laser | Service System: | Field Installation, Commissioning And Training |
| Power (watt): | 1000w | Cutting Speed: | 80m/min |
| Applicable Industry: | Building Material Shops,Manufacturing Plant | Applicable Material: | Metal |
| High Light: | 1000w 80m/min Metal Laser Cutting Machine,380V 80m/min Metal Laser Cutting Machine,80m/min 30mm Metal Laser Cutting Machine |
||
Machine Features
1. Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts. Dynamic performance is stable, able to work for long time.
2. Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.
3. Laser cutting head with auto focusing system. Laser cutting head automatically adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handling. Flat and wavy steel sheets can be cut with this machine.
|
project
|
parameter
|
unit
|
|
|
Processing size
|
(L)
|
3000
|
mm
|
|
|
(W)
|
1500
|
mm
|
|
X/Y axis positioning accuracy
|
±0.05
|
mm
|
|
|
X/Y axis repeatable positioning accuracy
|
±0.03
|
mm
|
|
|
X/Y maximum positioning speed
|
80
|
m/min
|
|
|
Laser generator power
|
1000
|
W
|
|
|
Cutting capacity: carbon steel plate
|
12
|
mm
|
|
|
stainless steel
|
6
|
mm
|
|
|
aluminum
|
4
|
mm
|
|
|
brass
|
3
|
mm
|
|
|
Maximum acceleration of X/Y
|
1.5
|
G
|
|
|
Motion stroke (axis)
|
X
|
3020
|
mm
|
|
|
Y
|
1520
|
mm
|
|
|
Z
|
150
|
mm
|
|
Number of phase
|
3
|
|
|
|
Power rating
|
380
|
V
|
|
|
frequency
|
50
|
Hz
|
|
Application Materials
Metal Laser Cutting Equipment is suitable for metal cutting like stainless steel sheet, mild steel plate,carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, etc.
Application Industries
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries
