Product Details:
|
| Name: | 1000w 80m/min Laser Plate Cutting Machine | Key Selling Points: | Automatic |
|---|---|---|---|
| Feature: | High Productivity , High Accuracy | Cutting Thickness: | 30mm |
| Cooling Method: | Water Cooling | Laser Type: | Fiber Laser |
| Service System: | Field Installation, Commissioning And Training | Power (watt): | 1000w |
| Cutting Speed: | 80m/min | Applicable Industry: | Building Material Shops,Manufacturing Plant |
| Cutting Area: | 3000mm*1500mm | Applicable Material: | Metal |
| High Light: | AoShuo 80m/min Laser Plate Cutting Machine,1KW 80m/min Laser Plate Cutting Machine,1000w 80m/min Laser Plate Cutting Machine |
||

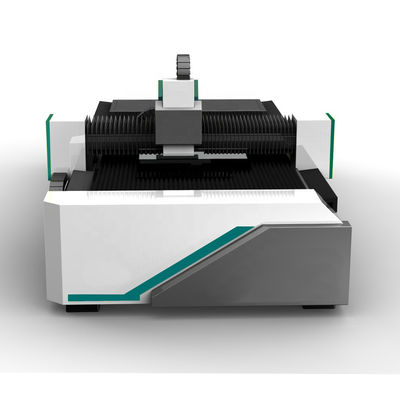

AoShuo 1KW 1000w 80m/min Laser Plate Cutting Machine
Fiber Laser Cutting Machine Advantages
1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5) Low maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7) Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
8) Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer is convenient for material uploading and unloading, improving efficiency.
Applicable Industries
The fiber laser machine is mainly used for cutting stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials.
|
project
|
parameter
|
unit
|
|
|
Processing size
|
(L)
|
3000
|
mm
|
|
|
(W)
|
1500
|
mm
|
|
X/Y axis positioning accuracy
|
±0.05
|
mm
|
|
|
X/Y axis repeatable positioning accuracy
|
±0.03
|
mm
|
|
|
X/Y maximum positioning speed
|
80
|
m/min
|
|
|
Laser generator power
|
1000
|
W
|
|
|
Cutting capacity: carbon steel plate
|
12 |
mm |
|
|
stainless steel
|
6
|
mm
|
|
|
aluminum
|
4
|
mm
|
|
|
brass
|
3
|
mm
|
|
|
Maximum acceleration of X/Y
|
1.5
|
G
|
|
|
Motion stroke (axis)
|
X
|
3020
|
mm
|
|
|
Y
|
1520
|
mm
|
|
|
Z
|
150
|
mm
|
|
Number of phase
|
3
|
|
|
|
Power rating
|
380
|
V
|
|
|
frequency
|
50
|
Hz
|
|
