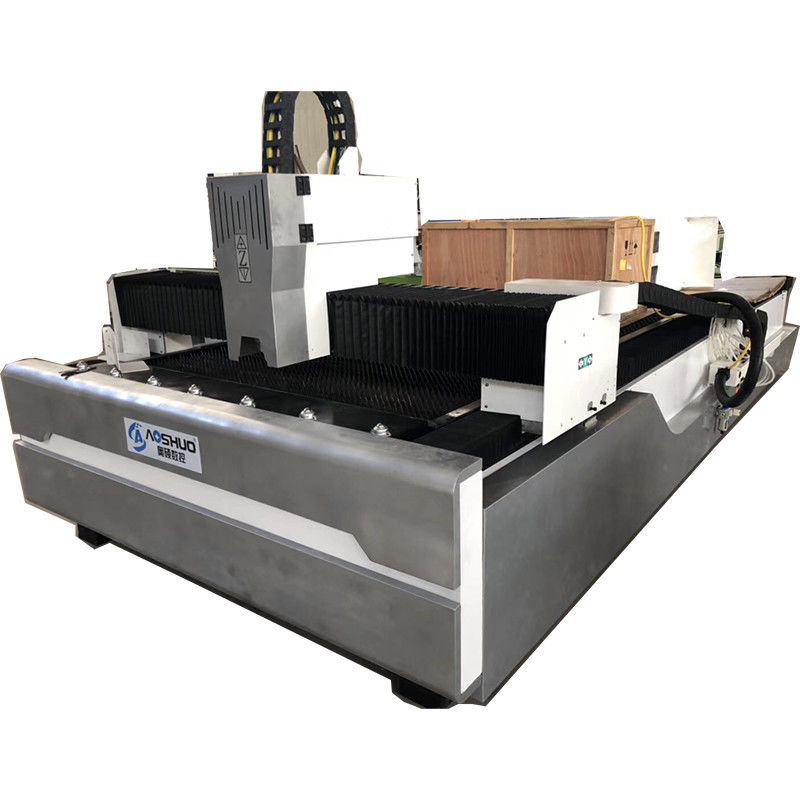

1000W 1070nm 24m/min CNC Laser Metal Cutting Machine

1000W 1070nm 24m/min CNC Laser Metal Cutting Machine
1000W 1070nm 24m/min CNC Laser Metal Cutting Machine

Large Image :  1000W 1070nm 24m/min CNC Laser Metal Cutting Machine

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: AoShuo
Certification: CE ISO
Model Number: 2040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packing in steel pallet
Delivery Time: 4 weeks
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50/MONTH

1000W 1070nm 24m/min CNC Laser Metal Cutting Machine

Description
Name: 24m/min CNC Laser Metal Cutting Machine Cutting Speed: 18m/min, 24m/min
Laser Wave Length: 1070nm Output Power: 500W 1000W
Servo Motor: France Schneider Cooling Mode: Water Cooling
Cutting Area: 3000mm*1500mm Control Software: Cypcut Control System
Cutting Thickness: 0.2 - 8mm Dimention: 44300mm*2348mm*1730mm
Working Area: 1500mm*3000mm 2000*4000mm Applicable Material: Metal
Weight: 3000KG
High Light:

1000W CNC Laser Metal Cutting Machine

,

1070nm CNC Laser Metal Cutting Machine

,

24m/min CNC Laser Metal Cutting Machine

1000W 1070nm 24m/min CNC Laser Metal Cutting Machine



Product Description


Adopting the combination of automatic camera locating system and laser head, with the assistance of computer software, label cutting machine can compensate automatically to pinpoint deformation of the fabric, it ensures the accuracy of cutting.
The application of camera systems, marking laser technology, automation technology, shortet cutting path of human-based software design, saves time and increases efficiency for user.


Characteristics


1. Stability and reliability of light path system and control system.
2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
3. Higher cutting quality and efficiency,cutting speed is up to 80m/min with appearanceand beautiful cutting edge.
4. high performance reducer,gear and rack;Japanese guide and ball screw.



Product parameter:



Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ

Cutting area

3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃



Machine Features:



1. Heavy bed, high temperature tempering treatment, large gantry precision processing.

2. Aviation aluminum beam, aging treatment, light weight, corrosion resistance, oxidation resistance, light weight.

3. Taiwan original high-precision rail rack.

4. Japan servo system, Schneider electronic components high stability parts.

5. Industrial-grade high-precision fiber cutting head, water cooling system is stable and durable.

6. Configure large brand lasers with extremely high beam quality and excellent stability.



Applicable Industries:



Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device canbe) stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.



What is the maximum cutting thickness?



The cutting thickness is related to the laser power.



300W: 1.5mm stainless steel, 4mm carbon steel



500W: 3mm stainless steel, 6mm carbon steel



1000W: 5mm stainless steel, 12mm carbon steel



2000W: 10mm stainless steel, 18mm carbon steel



Note: Only 1KW or above fiber laser can cut aluminum, copper, brass and other highly reflective metal plates.



1000W 1070nm 24m/min CNC Laser Metal Cutting Machine 01000W 1070nm 24m/min CNC Laser Metal Cutting Machine 1
