Product Details
Place of Origin: China
Brand Name: HE Laser
Certification: CE
Model Number: HEXS2-3015
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: 1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt.
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union
Model: |
Plate Fiber Laser Cutting Machine |
Working Area: |
3000*1500mm/9.84*4.92ft |
X Axis Stroke: |
3000mm/9.84ft |
Y Axis Stroke: |
1500mm/4.92ft |
Z Axis Stroke: |
220mm/0.72ft |
Max Running Speed: |
120m/min |
Maximum Acceleration: |
0.8G |
Laser Power: |
1500W/ 2000W/ 3000W/ 4000W/ 6000W |
Power Parameters: |
Three-phase AC 380V 50Hz |
Max Load Of Worktable: |
700kg |
Model: |
Plate Fiber Laser Cutting Machine |
Working Area: |
3000*1500mm/9.84*4.92ft |
X Axis Stroke: |
3000mm/9.84ft |
Y Axis Stroke: |
1500mm/4.92ft |
Z Axis Stroke: |
220mm/0.72ft |
Max Running Speed: |
120m/min |
Maximum Acceleration: |
0.8G |
Laser Power: |
1500W/ 2000W/ 3000W/ 4000W/ 6000W |
Power Parameters: |
Three-phase AC 380V 50Hz |
Max Load Of Worktable: |
700kg |

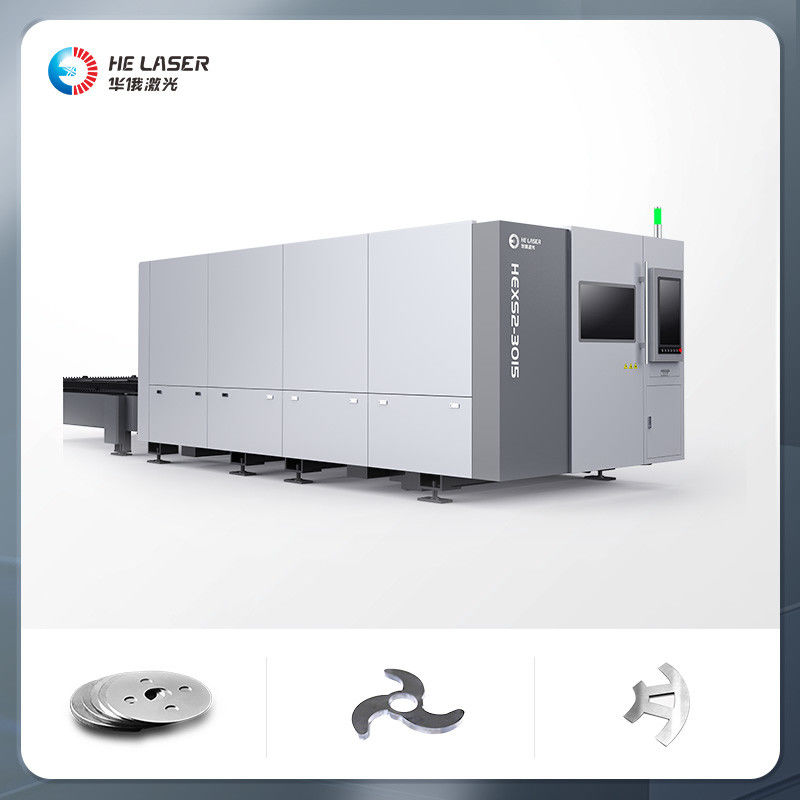

The HEXS2-3015 Plate Fiber Laser Cutting Machine is equipped with a high-precision Cypcut control system, allowing for more efficient and precise laser cutting. With a cutting thickness ranging from 0.2 to 25mm and a X axis stroke of 3000mm/9.84ft, this machine offers reliable and high-quality performance. The table maximum load of 700kg and positioning accuracy of ±0.05mm ensures a precise and efficient cutting process. This state-of-the-art fiber laser cutting machine is perfect for cutting plates and other materials with a wide range of materials, including stainless steel, aluminum, copper, and more. This machine is the ideal choice for those looking for a reliable and efficient laser cutting solution for their production needs.
Parameter | Details |
---|---|
Model | Plate Fiber Laser Cutting Machine |
Laser Type | Fiber Laser |
X Axis Stroke | 3000mm/9.84ft |
Y Axis Stroke | 1500mm/4.92ft |
Table Maximum Load(KG) | 700kg |
Max. Moving Speed | 120m/min |
Dimension(L*W*H) | 5000mmx2600mmx2000mm |
Repeatability Accuracy | ±0.02mm |
Cutting Thickness | 0.2-25mm |
Control System | Cypcut |
The Plate Fiber Laser Cutting Machine from HE Laser is a high-precision cutting tool for the production of metal plates. It is suitable for different types of metal plates with dimensions of 5000mmx2600mmx2000mm. The CE certification makes sure that the quality of the product is guaranteed. The Cypcut control system provides accurate and stable operation of the machine. Moreover, the water cooling mode makes sure the machine can operate at the highest efficiency and safety. The complete film packaging machine makes sure the machine is safe during transportation. The anti-collision package edge and fumigation-free plywood wooden box with iron binding belt guarantee the machine will arrive in perfect condition.
The Plate Fiber Laser Cutting Machine is widely used in the production of metal plates, such as stainless steel, carbon steel, aluminum, brass, etc. It can be used for cutting, punching, marking and other operations. It is widely used in aerospace, automobile, medical, food processing and other industries. It can also be used for engraving of various types of text and images.
The Plate Fiber Laser Cutting Machine from HE Laser offers the highest precision and accuracy. It is fast, reliable and easy to operate. With the CE certification, you can be sure that you are getting a product that is of the highest quality.
Q: I know nothing about this machine, what kind of machine should I choose?
A: In order to recommend you the most suitable machine model, just tell us below information
1). What is your material
2). The size of material
3). The thickness of material
Q: Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well. According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.
Q: If some problems happen to this machine during warranty period, what should I do?
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years(main spare parts),except for the consumable parts such as ceramic ring, focus lens,
nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
So any doubts, just let us know, we will give you solutions.
